Thursday, December 24, 2020



Why is my SYSDATE / SYSTIMESTAMP time not the same as my system clock on Unix?


telnet/ssh to the Unix box
connect using sqlplus in the telnet session:

1) once through the listener using a tnsnames alias
$sqlplus user/password @ [tnsnames alias]
SQL>select to_char(sysdate,'DD-MON-YY HH24:MI:SS') from dual;

2) once through a "local" ORACLE_SID connection
$env | egrep 'ORACLE_SID'
$sqlplus user/password
SQL>select to_char(sysdate,'DD-MON-YY HH24:MI:SS') from dual;

Check that the time in the banner of sqlplus ( SQL*Plus: Release 10.1.0.4.0 - Production on Wo Jan 11 15:05:46 2006 ) is reflecting the time based on the current TZ set in the Unix (!) session.


For ASM

For 11.2.0.2 and above the TZ entry in $GRID_HOME/crs/install/s_crsconfig_<nodename>_env.txt sets to correct timezone.
This enables resources started under the Grid Infrastructure home (listener, databases) using the timezone set in here
and so has no requirement anymore to set TZ for DB and listener via setenv.
For more details see: How To Change Timezone for 11gR2 Grid Infrastructure ( Document 1209444.1)

1) Check the environment variables set for database and listener in your CRS configuration

srvctl getenv database -d <dbname>
srvctl getenv nodeapps -n <nodename>

-- If you are 11.2, then use 'getenv listener' instead of 'getenv nodeapps':
srvctl getenv listener

2) Check the current environment variables used for PMON and Listener

Wednesday, December 23, 2020



This could be due to CredSSP encryption oracle remediation - RDP to Windows 10 pro host

Error

 Following Windows security updates in May 2018, when attempting to RDP to a Windows 10 Pro workstation the following error message is displayed after successfully entering user credentials:

An authentication error occurred. The function requested is not supported.

This could be due to CredSSP encryption oracle remediation

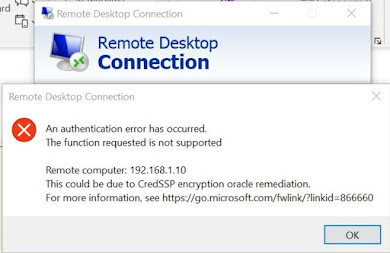

Screenshot












Solution

File rd_patch.reg:

Windows Registry Editor Version 5.00



[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System\CredSSP]



[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System\CredSSP\Parameters]

"AllowEncryptionOracle"=dword:00000002



For those who would like something easy to copy / paste into an elevated command prompt:

reg add HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System\CredSSP\Parameters /v AllowEncryptionOracle /t REG_DWORD /d 2 /f

Thursday, December 17, 2020


RMAN Duplicate Error While restore RMAN backup of ASM environment to Non ASM environment


 I am trying to restore target database with below command :


rman auxiliary /

run {
allocate auxiliary channel ch1 type disk;
allocate auxiliary channel ch2 type disk;
allocate auxiliary channel ch3 type disk;
allocate auxiliary channel ch4 type disk;
allocate auxiliary channel ch5 type disk;
allocate auxiliary channel ch6 type disk;
allocate auxiliary channel ch7 type disk;
allocate auxiliary channel ch8 type disk;
duplicate target database to EFGH
BACKUP LOCATION '/bkup/ABCD'
UNTIL TIME "TO_DATE('2016-07-21 10:30:10', 'YYYY-MM-DD HH24:MI:SS')";
release channel ch1;
release channel ch2;
release channel ch3;
release channel ch4;
release channel ch5;
release channel ch6;
release channel ch7;
release channel ch8;
}
exit


Command is failing is with below error :

contents of Memory Script:
{
sql clone "alter system set db_name =
''EFGH'' comment=
''Reset to original value by RMAN'' scope=spfile";
sql clone "alter system reset db_unique_name scope=spfile";
shutdown clone immediate;
}
executing Memory Script

Errors in memory script
RMAN-03015: error occurred in stored script Memory Script
RMAN-06136: ORACLE error from auxiliary database: ORA-01507: database not mounted
ORA-06512: at "SYS.X$DBMS_RCVMAN", line 13658
ORA-06512: at line 1
RMAN-03015: error occurred in stored script Memory Script
RMAN-06136: ORACLE error from auxiliary database: ORA-19563: header validation failed for file
ORA-06512: at "SYS.X$DBMS_BACKUP_RESTORE", line 3939
ORA-06512: at "SYS.X$DBMS_BACKUP_RESTORE", line 3882
ORA-06512: at line 1
RMAN-05001: auxiliary file name +RECO_MP/ABCD/blcktrfile1.log conflicts with a file used by the target database
RMAN-00571: ===========================================================
RMAN-00569: =============== ERROR MESSAGE STACK FOLLOWS ===============
RMAN-00571: ===========================================================
RMAN-03002: failure of Duplicate Db command at 08/21/2016 00:12:12
RMAN-05501: aborting duplication of target database

This seems to be failing as BCT appears to be enabled as per log, how can I control block change tracking at target side using duplicate command as I am simply opening the database in nomount mode, rest everything else is taking care off by duplicate command.


Regards,
Saurabh

and we said...

This is a known issue. I've copied the MOS note below

=======================
Rman Duplicate fail ORA-19755, Tries Open The Block Change Tracking File of Source DB (Doc ID 1098638.1) To BottomTo Bottom

In this Document
Symptoms
Cause
Solution
References

APPLIES TO:

Oracle Database - Enterprise Edition - Version 11.2.0.1 and later
Information in this document applies to any platform.
***Checked for relevance on 15-Apr-2014***
SYMPTOMS

When trying to do an rman duplicate with the source database using block change tracking file receiving
errors:


RMAN-03002: failure of Duplicate Db command at 05/11/2010 18:22:47
RMAN-03015: error occurred in stored script Memory Script
ORA-00283: recovery session canceled due to errors
RMAN-11003: failure during parse/execution of SQL statement: alter database recover logfile '/rman/I3VPROD1/archivelog/2010_05_11/o1_mf_1_40265_5ym0xdlc_.arc'
ORA-00283: recovery session canceled due to errors
ORA-19755: could not open change tracking file
ORA-19750: change tracking file: '/rman/bct/blockchanges.log'
ORA-27037: unable to obtain file status
IBM AIX RISC System/6000 Error: 2: No such file or directory
Additional information: 3



CAUSE

Unpublished Bug 7500916 RMAN DUPLICATE DOESN'T PRESERVE DATABASE LEVEL SUPPLEMENTAL LOGGING DIRECTIVES
Bug 10185641 RMAN'S DB_FILE_NAME_CONVERT OF DUPLICATE NOT APPLIED TO CHANGE TRACKING FILE
Bug 10193846 RMAN DUPLICATE FAILS WITH ORA-19755 WHEN BCT FILE OF PRIMARY IS NOT ACCESSIBLE

Unpublished Bug 11744544 Set newname for database does not apply to block change tracking file
fixed in 12.1
Description: Block change tracking recreation might fail if ot duplicating to OMF newnames
or db_file_name_convert can not be applied to it.



Bug 18371441 : RMAN DUPLICATE FAILS TO CREATE BCT FILE

SOLUTION


You are encountering one of several bugs. The best option is to apply the fix for unpublished Bug: 11744544 Set newname for database does not apply to block change tracking file

Unpublished Bug 11744544 Set newname for database does not apply to block change tracking file. fixed in 12.1
Description: Block change tracking recreation might fail if ot duplicating to OMF newnames
or db_file_name_convert can not be applied to it.

There are patches available for this bug for several platforms. With the patch, you can use new syntax:

SET NEWNAME FOR BLOCK CHANGE TRACKING FILE TO '...filename...';

to explicitly set the location of the block change tracking file

For example:

run
{
SET NEWNAME FOR BLOCK CHANGE TRACKING FILE TO '/oracle/oradata/TEST/block_change.bct';
...
duplicate database to TEST..;

}

OR

run
{
SET NEWNAME FOR BLOCK CHANGE TRACKING FILE TO '+DATA';
...
duplicate database to TEST..;

}





Unpublished Bug 7500916

This is fixed in the oracle patchset 11.2.0.2 as part of Bug 7500916.
The workaround is to disable change tracking before duplicate.

Bug 10185641

Workaround is to set DB_FILE_NAME_CONVERT in the SET-clause of duplicate, instead of using DB_FILE_NAME_CONVERT setting in an init.ora or spfile.
Example :
RMAN> duplicate database v112 to duplv112
backup location '/u01/oradata/v112/reco_area/V112/backupset/2010_10_09'
spfile parameter_value_convert ('v112', 'duplv112')
set db_file_name_convert = 'v112', 'duplv112'
noresume;
This bug is fixed in Product Version 12.1


Bug 10193846

Workaround is to create a dummy file in the location where the error ORA-19755 is signalled.
A workaround for all of the bugs would be to disable block change tracking on the target database before
duplicating.

In the case of using an UNTIL clause, disabling of BCT will not work unless the selected UNTIL time or SCN is AFTER the time of disabling block change tracking.

Bug 10193846 - RMAN duplicate fails with ORA-19755 when BCT file is not accessible (Doc ID 10193846.8)
This issue is fixed in:
12.1.0.1 (Base Release)
11.2.0.3 (Server Patch Set)
11.2.0.2.3 Database Patch Set Update
11.2.0.2 Bundle Patch 7 for Exadata Database
11.2.0.1 Bundle Patch 12 for Exadata Database
11.2.0.2 Patch 6 on Windows Platforms


(MAY-2014) Related open issue Bug 18371441 - RMAN DUPLICATE FAILS TO CREATE BCT FILE
============================

Sunday, December 6, 2020



RMAN DUPLICATE ERRORS WITH RMAN-5565 - SPFILE NO FOUND (Doc ID 874202.1)


APPLIES TO:

Oracle Database - Enterprise Edition - Version 11.2.0.2 to 11.2.0.2 [Release 11.2]
Oracle Database Cloud Schema Service - Version N/A and later
Oracle Database Exadata Express Cloud Service - Version N/A and later
Oracle Database Exadata Cloud Machine - Version N/A and later
Oracle Database Cloud Exadata Service - Version N/A and later
Information in this document applies to any platform.

SYMPTOMS

An attempt to perform a duplicate using 11GR2 feature of not connecting to a catalog or target can result in the following error:

DUPLICATE DATABASE TO dupdb
UNTIL TIME "TO_DATE('06/23/2009 14:45:00', 'MM/DD/YYYY HH24:MI:SS')"
SPFILE
BACKUP LOCATION '/recovery_area'
NOFILENAMECHECK;

Starting Duplicate Db at 2009/06/23 15:52:31
RMAN-571: ===========================================================
RMAN-569: =============== ERROR MESSAGE STACK FOLLOWS ===============
RMAN-571: ===========================================================
RMAN-3002: failure of Duplicate Db command at 06/23/2009 15:52:31
RMAN-5565: SPFILE backup created before TO_DATE('06/23/2009 14:45:00', 'MM/DD/YYYY HH24:MI:SS') not found in /recovery_area


OR

RMAN-03002: failure of Duplicate Db command
RMAN-05579: CONTROLFILE backup not found in '/recovery_area'

CAUSE

The problem is caused due to Unpublished BUG 8626638.

The backup location is directory off the root path.

BACKUP LOCATION '/recovery_area'

It is only specific to directory from the root mount point.

SOLUTION

There are two potential workarounds:

  1. Append a backslash at the end of the path ( i.e BACKUP LOCATION '/recovery_area/')
  2. Select a location to store the files which has not be created directly off the root mount point.



Monday, November 30, 2020

 Check The status of the cold backup before Perform Clone by creating control file method

=================================================================


select hxfil FILENUMBER, fhsta STATUS, fhscn SCN, fhrba_seq SEQUENCE,fhafs,FHDBI,fhdbn from x$kcvfh order by fhsta;

FILENUMBER STATUS SCN SEQUENCE FHAFS FHDBI FHDBN
---------- ---------- ---------------- ---------- ---------------- ---------- ---------
6 4 2401335881 1 0 3300273167 PROD
2 4 2401335881 1 0 3300273167 PROD
3 4 2401335881 1 0 3300273167 PROD
4 4 2401335881 1 0 3300273167 PROD
5 4 2401335881 1 0 3300273167 PROD
11 4 2401335881 1 0 3300273167 PROD
7 4 2401335881 1 0 3300273167 PROD
8 4 2401335881 1 0 3300273167 PROD
9 4 2401335881 1 0 3300273167 PROD
10 4 2401335881 1 0 3300273167 PROD
1 8196 2401335881 1 0 3300273167 PROD

11 rows selected.
================================================================================================================================================================

See the status column, its 8194 (for system datafile) and 4 for non system datafiles,
the value 8196 and 4 denoted, online fuzzy, means that the database was opened, when the datafiles were copied,
if it was a cold backup, in that case the status column must be 8192 and 0 (Zero)



Tuesday, November 3, 2020

Startup Fails With ORA-01012: Not Logged On


Problem Description
Users cant able to login to database server. Though it allow sysdba to login, it does not allow to run any query. Sometimes it will show database is connected to an idle instance. But when we startup database it shall throw error ORA-01081: cannot start already-running .

[oracle@mezon01 ~]$ sqlplus sys/System_2018@IIRDB

SQL*Plus: Release 11.2.0.4.0 Production on Thu May 24 08:03:07 2018

Copyright (c) 1982, 2013, Oracle. All rights reserved.

ERROR:
ORA-12520: TNS:listener could not find available handler for requested type of
server


[oracle@mezon01 ~]$ sqlplus -prelim “/as sysdba”

SQL*Plus: Release 11.2.0.4.0 Production on Thu May 24 08:04:06 2018

Copyright (c) 1982, 2013, Oracle. All rights reserved.

SQL> show parameter sga_t;
ORA-01012: not logged on
Process ID: 0
Session ID: 0 Serial number: 0



SQL> startup;
ORA-01012: not logged on
SQL> shutdown immediate;
ORA-01012: not logged on


[oracle@mezon01 ~]$
Changes
Oracle has been forcefully shutdown at OS level or crashed.

CAUSE
An orphaned shared memory segment belonging to the ORACLE_SID still exists from a previous instance startup.

The command
ps -ef | grep $ORACLE_SID

shows no processes but with ORACLE_SID set the Oracle ‘sysresv’ utility shows a shared memory segment for a non-existing instance, e.g.

$ sysresv

IPC Resources for ORACLE_SID “IIRDB” :

Shared Memory:
ID              KEY
100270098 0x00000000
100302867 0x00000000
100335643 0x14203f64

Semaphores:
ID              KEY
No semaphore resources used
Oracle Instance not alive for sid “IIRDB”

Solution
On OS level, remove the orphaned shared memory segment using:

ipcrm -m <problem shared memory id>

ipcrm -m 100270098
ipcrm -m 100302867
ipcrm -m 100335643

$sqlplus ‘/as sysdba’

Connected to an idle instance.

SQL> startup Oracle instance started
Total System Global Area   10689474560 bytes
Fixed Size                     2237776 bytes
Variable Size               6375344816 bytes
Database Buffers            4294967296 bytes
Redo Buffers                  16924672 bytes
Oracle Instance Started.
Oracle Database Opened.

Monday, November 2, 2020



Deleting the files between particular dates

Code:

find ./ -mtime +30 -type f -print



The above command will show all files modified 30 days ago or more - use the print statement first to be sure that you find the correct files and do check it's what you want. Then you can run the command again with the delete function added like this;


Code:

find ./ -mtime +30 -type f -exec rm {} \;


Thursday, October 15, 2020



Oracle Data Pump (expdp, impdp) in Oracle Database 10g, 11g, 12c, 18c, 19c

https://oracle-base.com/articles/10g/oracle-data-pump-10g


# su - oracle

# .oraenv  (select prod)

# sqlplus / as sysdba


SQL> CREATE OR REPLACE DIRECTORY exp_db AS '/u02/db_export';

SQL> GRANT READ, WRITE ON DIRECTORY exp_db TO system;


# expdp system/manager@prod full=Y directory=exp_db dumpfile=prod.dmp logfile=expPROD.log

Wednesday, October 14, 2020



Use RESETLOGS after incomplete recovery (when the entire redo stream wasn't applied). RESETLOGS will initialize the logs, reset your log sequence number, and start a new "incarnation" of the database.

Use NORESETLOGS when doing complete recovery (when the entire redo stream was applied). Oracle will continue using the existing (valid) log files.



NORESETLOGS

The NORESETLOGS option does not clear the redo log files during startup and the online redo logs to be used for recovery. Only used in scenario where MANUAL RECOVERY is started, CANCEL is used, and then RECOVER DATABASE is started.

RESETLOGS

CAUTION: Never use RESETLOGS unless necessary.

Once RESETLOGS is used then the redo log files cannot be used and any completed transactions in those redo logs are lost!!

Before using the RESETLOGS option take an offline backup of the database.

The RESETLOGS option clears all the online redo logs and modifies all the online data files to indicate no recovery is needed. After resetting the redo logs none of the existing log files or data file backups can be used. In the control file, the log sequence number is modified, which is very important for recovery purposes. The recovery will be applied only to the log files whose sequence number is greater than log sequence number in the control file. One has to be very cautious when using RESETLOGS option. It is important to remember that all datafiles must be online otherwise they will become useless once the database is up

Thursday, September 24, 2020


Clone Pluggable database

==========================

SQL> select name,open_mode from v$pdbs;

NAME        OPEN_MODE

------------------------------ ----------

PDB$SEED        READ ONLY

MIGPDB         READ WRITE


SQL> alter session set container=MIGPDB;

Session altered.


SQL> select file_name from dba_data_files;

SQL> select file_name from dba_data_files;

FILE_NAME

--------------------------------------------------------------------------------

/u02/oradata/MIGCDB/AFF38B6D8283019AE053AC10028C9AE1/datafile/o1_mf_system_hpojb1ry_.dbf

/u02/oradata/MIGCDB/AFF38B6D8283019AE053AC10028C9AE1/datafile/o1_mf_sysaux_hpojb1s2_.dbf

/u02/oradata/MIGCDB/AFF38B6D8283019AE053AC10028C9AE1/datafile/o1_mf_undotbs1_hpojb1s2_.dbf  etc...


SQL> show con_name

CON_NAME

------------------------------

MIGPDB


SQL> shutdown immediate;

Pluggable Database closed.



SQL> startup open read only

Pluggable Database opened.



# mkdir /u02/oradata/MIGCDB/demopdb


SQL > alter session set container=cdb$root;


SQL > show con_name


CON_NAME

------------------------------

CDB$ROOT


SQL> alter system set db_create_file_dest='/u02/oradata/MIGCDB/demopdb';


SQL> create pluggable database DEMOPDB from MIGPDB FILE_NAME_CONVERT=('/u02/oradata/MIGCDB/AFF38B6D8283019AE053AC10028C9AE1/datafile/','/u02/oradata/MIGCDB/demopdb');



SQL> select name,open_mode from v$pdbs;



NAME        OPEN_MODE

------------------------------ ----------

PDB$SEED          READ ONLY

MIGPDB              READ ONLY

DEMOPDB          MOUNTED



SQL> alter session set CONTAINER=MIGPDB;



Session altered.



SQL> shutdown immediate;

Pluggable Database closed.

SQL> startup

Pluggable Database opened.

SQL> show con_name

---------------------------------------------

SQL> alter session set container=DEMOPDB;



Session altered.



SQL> startup

Pluggable Database opened.


  SQL> alter session set container=cdb$root;

Connected.

SQL> select name,open_mode from v$pdbs;



NAME        OPEN_MODE

------------------------------ ----------

PDB$SEED        READ ONLY

MIGPDB             READ WRITE

DEMOPDB         READ WRITE

Thursday, September 17, 2020



Multitenant : Clone a Remote PDB

https://oracle-base.com/articles/12c/multitenant-clone-remote-pdb-or-non-cdb-12cr1#prerequisites

Connect to the remote CDB and prepare the remote PDB for cloning.

export ORAENV_ASK=NO

export ORACLE_SID=cdb3

. oraenv

export ORAENV_ASK=YES



sqlplus / as sysdba

Create a user in the remote database for use with the database link. In this case, we will use a local user in the remote PDB.

ALTER SESSION SET CONTAINER=pdb5;



CREATE USER remote_clone_user IDENTIFIED BY remote_clone_user;

GRANT CREATE SESSION, CREATE PLUGGABLE DATABASE TO remote_clone_user;

Open the remote PDB in read-only mode.

CONN / AS SYSDBA

ALTER PLUGGABLE DATABASE pdb5 CLOSE;

ALTER PLUGGABLE DATABASE pdb5 OPEN READ ONLY;

EXIT;

Switch to the local server and create a "tnsnames.ora" entry pointing to the remote database for use in the USING clause of the database link.

PDB5 =

  (DESCRIPTION =

    (ADDRESS_LIST =

      (ADDRESS = (PROTOCOL = TCP)(HOST = ol7-121.localdomain)(PORT = 1521))

    )

    (CONNECT_DATA =

      (SERVICE_NAME = pdb5)

    )

  )

Connect to the local database to initiate the clone.

export ORAENV_ASK=NO

export ORACLE_SID=cdb1

. oraenv

export ORAENV_ASK=YES



sqlplus / as sysdba

Create a database link in the local database, pointing to the remote database.

DROP DATABASE LINK clone_link;



CREATE DATABASE LINK clone_link

  CONNECT TO remote_clone_user IDENTIFIED BY remote_clone_user USING 'pdb5';



-- Test link.

DESC user_tables@clone_link

Create a new PDB in the local database by cloning the remote PDB. In this case we are using Oracle Managed Files (OMF), so we don't need to bother with FILE_NAME_CONVERT parameter for file name conversions.

CREATE PLUGGABLE DATABASE pdb5new FROM pdb5@clone_link;



Pluggable database created.



SQL>

We can see the new PDB has been created, but it is in the MOUNTED state.

SELECT name, open_mode FROM v$pdbs WHERE name = 'PDB5NEW';



NAME                           OPEN_MODE

------------------------------ ----------

PDB5NEW                        MOUNTED



SQL>

The PDB is opened in read-write mode to complete the process.

ALTER PLUGGABLE DATABASE pdb5new OPEN;



SELECT name, open_mode FROM v$pdbs WHERE name = 'PDB5NEW';



NAME                           OPEN_MODE

------------------------------ ----------

PDB5NEW                        READ WRITE



SQL>



  RMAN-20207: UNTIL TIME or RECOVERY WINDOW is before RESETLOGS time https://shivanandarao-oracle.com/2012/12/05/rman-20207-until-time-or-re...
